E1, T1 Multiplexers, Gigabit Media Converters and Video Broadcasting Equipment :: Video-Audio Tx-Rx :: 1 Video SM 40km, MM 5km,Receiver

1 Video SM 40km, MM 5km,Receiver

1 Channel Digital Video Optical Transmitter & Receiver with 1 Stereo Audio and 1 Data Optional

undefined undefined undefinedundefined

Overview
The Product provides customer with the most cost-effective solution for transmission of 1 channel uncompressed digital video, 1 reversed stereo audio and 1 reversed RS232/RS422/RS485 data over one single fiber cable. It is an easy installation and adjustment free device while providing high quality, real-time video. The product may also be maintained by our future product, FB-V1000NMS, a Network Management System.
Applications for this product include CCTV, video surveillance, homeland security, ITS and etc.

Features

Transports 1 channel digitized, high quality, uncompressed video
8MHz video bandwidth, Compatible with NTSC, PAL and SECAM
Provides 1 reversed stereo audio and 1 reversed data transmission over same optical fiber
Easy installation and adjustment free
Transmission range up to 120KM depending on model
RS232, RS422/RS485 compatible data interfaces
Stand alone operation or mount in chassis

Specifications

Power:
220VAC/50Hz, standalone device
0.2A@12VDC for rack card
Indicators:
Power, Link Status, Video Signal
Audio status, Data traffic
Video:
Format: PAL/NTSC/SECAM
Video Signal: 1Vp-p, 75ohm
Digitization: 8bits/10bits
Bandwidth: 8MHz
DG <1%
DP <1 degree
SNR >60dB(weighted)
Connectors: 1 BNCs
Physical Dimensions:
176X220X25.4(mm) Card
130 x 122 x 36(mm) Standalone

Audio
Channel: 1 stereo audio
Audio Input: unbalanced, 600Ohms
Digitization: 16bit@48k
Frequency: 10Hz to 20KHz
SNR: >70dB
Connector: RJ45 or RCA
Data:
Channel: 1, Reversed
Data Rate: 0~~23.04Kbps/channel
Selectable RS-232/RS-422/RS-485
Connector: RJ45 or Terminal Block with Screw Clamps
Environment:
Operating: -40oC~+70 oC
Storage: -40oC~+85 oC
Humidity: 0-95% Non-Condensing

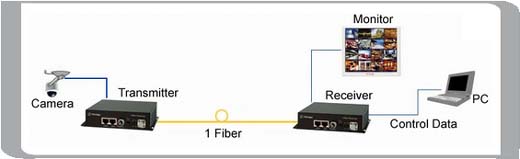

Typical Application

Order Information

Fiber Type	Video Transmitter	Video Receiver	Range	Comment
Multimode (62.5/125um)	F7-1VT -M2S	F7-1VR-M2S	< 2Km	video only
Multimode (62.5/125um)	F7-1VT-1AR-1DR-M3S	F7-1VR-1AT-1DT- M3S	< 2Km
Single Mode (09/125um)	F7-1VT -S122S	F7-1VR-S122S	120Km	video only
	F7-1VT-1AR-1DR-S042S	F7-1VR-1AT-1DT-S042S	40Km
	F7-1VT-1AR-1DR-S082S	F7-1VR-1AT-1DT-S082S	80Km
CWDM	F7-1VT-WSllllrrS1	F7-1VR-WSllllrrS	rrmKm	video only
CWDM	F7-1VT-1AR-1DR-WSllllrrS	F7-1VR-1AT-1DT-WllllrrS	rrKm

Note:

Replace llll with CWDM wavelengh, replace rr with requested distance
SC connectors standard, consult factory for other connectors.
Add -M at the end of model number for rack card product

Details


SKU	F7-1VR
Quantity in stock	1 item(s) available
Price:	AUD 189.00
